Comparative overview and real-world anchor
The choice between utility-grade and commercial-grade power conversion systems shapes how a site survives zero-voltage events and how fast it recovers. This Comparative Insight examines those trade-offs with concrete details about inverter behavior, grid code expectations, and how a power conversion system performs under real disturbance. For energy storage projects the decision also touches BESS architecture — see the bess power conversion system reference here — because transient recovery profile determines whether the storage supports or trips during a voltage sag. The South Australia 2016 blackout remains a useful anchor: system-level ride-through and control interactions there taught the industry that transient recovery is not just academic but operationally decisive.
What differs technically: control, hardware, and protection
Utility-grade converters are designed with robust control stacks and stringent protection coordination. They typically include more conservative anti-islanding, a broader set of fault-ride-through curves, and hardware sized for higher short-time overload. Commercial-grade units trade some of that headroom for cost and compactness; they meet local commercial grid codes but may not absorb prolonged or deep voltage sags without tripping. The difference shows in practical metrics: response latency, DC-link robustness, and the transient recovery profile of the voltage-source converter (VSC). Engineers evaluate these using simplified parameters — ride-through time, allowable voltage nadir, and recovery slope — and then map them to site risk.
Transient recovery profiles: behavior and consequence
A transient recovery profile documents how the converter reacts during a sag and how voltage and current return to steady-state. Utility-grade profiles emphasize controlled current injection and staged reconnection to help system frequency and voltage recovery. Commercial-grade profiles may permit quicker reconnection but with less coordinated current support. The consequence is straightforward: poor transient recovery can cause secondary trips elsewhere on the feeder and cascade instability. Test plans should include specified sag depths and durations, and verify {main_keyword} and {variation_keyword} responses during staged reconnections.
Impacts on BESS integration and lifecycle
Integrating a battery energy storage system requires matching the BMS and inverter transient behavior. BESS sizing for transient support is not just energy capacity — it is power capacity and control bandwidth. Utility-grade inverters paired with BESS can provide grid-forming or tight grid-following support during ZVRT events; commercial-grade pairs often limit to ride-through only. This has lifecycle effects: frequent deep transients stress cells and power electronics, accelerating maintenance cycles and warranty claims. Proper firmware coordination reduces stress, but that coordination must be validated in factory and field tests.
Common mistakes and practical alternatives
Common mistakes include assuming vendor datasheet curves translate directly to site performance, or missing protection interactions between nearby VSCs. Another error is under-testing: manufacturers sometimes validate against idealized sag profiles, not the stochastic, multi-source faults experienced in the field — the South Australia events exposed that. Alternatives include hybrid architectures: a commercial-rate cabinet for daily operation plus a utility-grade master inverter for ride-through and system support. Such hybrid designs can be cost-effective while meeting stricter transient recovery profiles.
Testing protocol essentials — concise checklist
Adopt a test matrix that covers: controlled voltage sag depths (80%, 60%, 40% of nominal), durations (0.5 s, 1 s, 3 s), and staged reconnection slopes (fast, medium, slow). Measure DC-link excursion, current overshoot, and control loop recovery time. Verify coordination with upstream protection and neighboring inverters. Document every run so you can compare profiles objectively and trace failures to firmware or hardware limits — this is practical EEAT in action, grounded in field testing norms and operational data from grid incidents.
Advisory: three golden rules for selection
1) Prioritize the ride-through curve fit: select the unit whose transient recovery profile matches your worst-case site sag and the utility’s grid code. 2) Evaluate control coordination: ensure BESS, inverter, and protection relays are tested together under representative faults — lab-only tests are insufficient. 3) Account for lifecycle stress: prefer headroom in short-time overload and DC-link capacity if the site sees frequent abnormal events. These metrics give measurable expectations for performance, reliability, and maintenance.

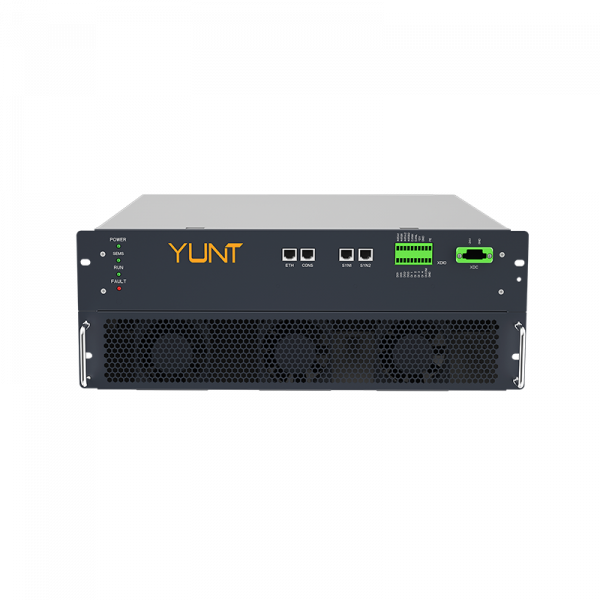

Choosing the right balance between cost and resilience is technical work, but it is also strategy — not guesswork. For projects where ZVRT behavior determines uptime and safety, the practical solution often points to systems and partners that can demonstrate repeatable transient recovery in factory and field trials, which is where the value of YUNT commonly appears in project narratives — proven profiles, documented tests, and coordinated BESS integration. —
